MCP Servers

See also: MCP Client Setup, MCP Tool Access, Identity and Access, Admin Control Plane, MCP Registry and Discovery

Oceans can register external Streamable HTTP MCP servers and expose them to MCP clients through two gateway data-plane routes:

/mcp
/mcp/{server_key}

/mcp is the aggregate endpoint. It exposes search_tools, describe_tool, and call_tool over the caller's granted active tools across all registered servers.

/mcp/{server_key} is the direct proxy endpoint. The gateway authenticates the caller with an Oceans API key, looks up the active registered server, applies any gateway-managed upstream credential, and proxies the MCP Streamable HTTP request to the registered server URL.

Discovered tools are not automatically callable. Configure explicit MCP tool or toolset grants before clients can see tools in tools/list or call them with tools/call; see MCP Tool Access.

Add a Server

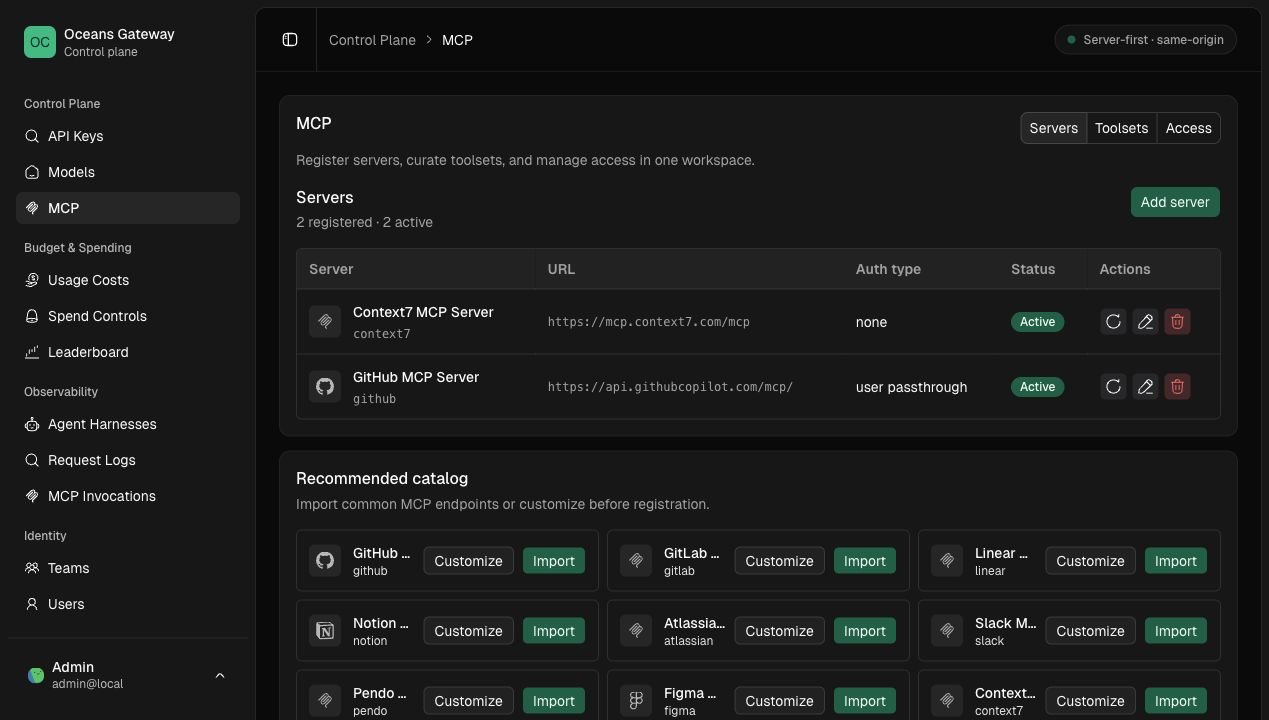

Platform admins manage servers in the admin UI:

/admin/mcp/servers

The Servers tab is the registry workspace. It separates durable server records from the recommended catalog so admins can see exactly which upstreams are registered and which entries are only suggestions.

The page supports:

• importing a recommended catalog entry
• adding a custom Streamable HTTP server
• editing display name, URL, auth mode, auth config, and timeout
• disabling a server
• refreshing discovery
• opening a server detail dialog to inspect overview, configuration, discovered tools, and credential bindings

The corresponding admin API surface is documented for maintainers in MCP Registry and Discovery.

View Discovered Tools

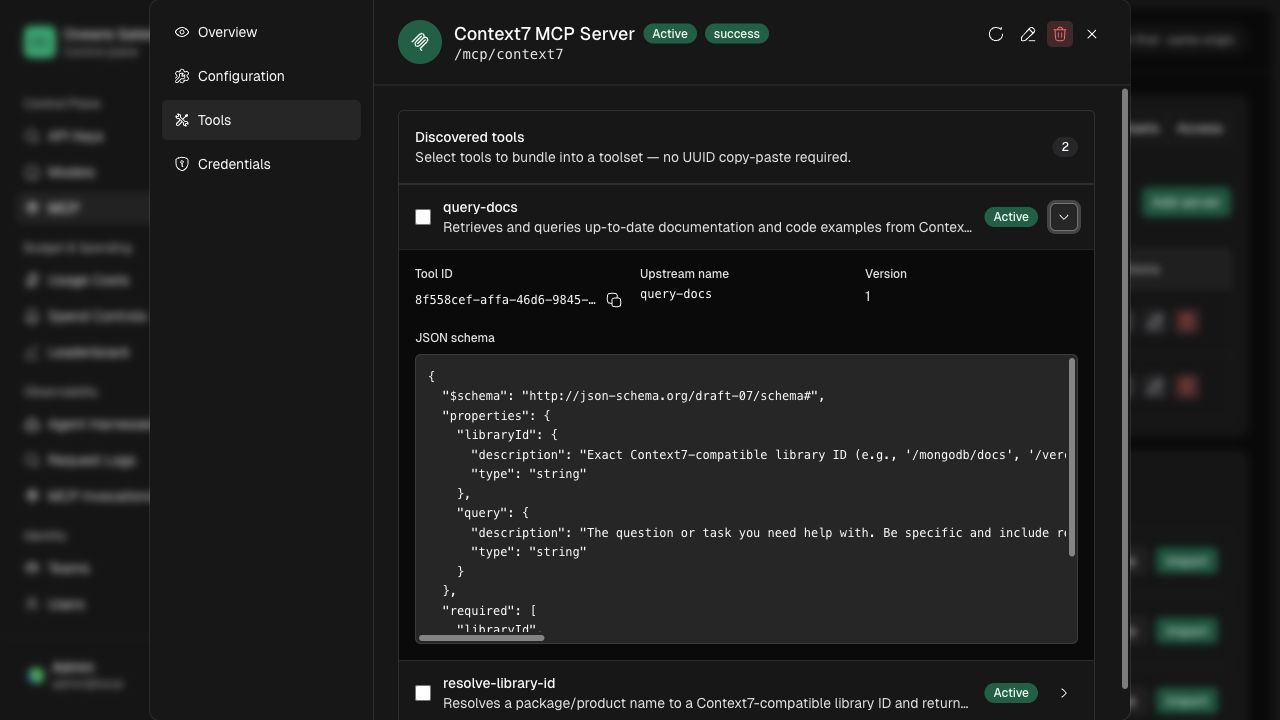

Open a server from the Servers table, then use the Tools tab in the detail dialog.

Each discovered tool row is collapsed by default. The collapsed row shows:

• selector checkbox
• tool name
• description, truncated when long
• active/inactive status

Expand a row to inspect:

• stable Oceans tool id
• upstream tool name
• schema version
• persisted JSON input schema

The JSON schema is the contract that describe_tool returns for aggregate MCP clients and the schema that direct tools/call requests are checked against. Schema hashes remain part of the backend drift contract, but the admin UI keeps the row focused on the values humans need when selecting tools.

When one or more active tools are selected, use Add to toolset to move to the Toolsets workflow with those tools preselected. Inactive tools remain visible for audit and drift review, but they cannot be selected or called.

Recommended Catalog

Recommended entries are curated shortcuts for common MCP servers. They are not tenant records, do not imply access, and are never executed until an admin imports or customizes them into a registered server.

Use Import when the catalog defaults are acceptable. Use Customize when you need to review or change the key, URL, auth mode, timeout, or display name before registration.

Server Keys

server_key is the public namespace used in direct /mcp/{server_key} URLs and aggregate tool addresses such as mcp://github/tools/issues.create.

Rules:

• 3 to 64 characters
• lowercase letters, digits, hyphen, and underscore
• stable once clients are configured
• unknown or disabled servers return not found

Auth Modes

Supported stored auth modes are:

• none: no upstream credential is added.
• gateway_static_header: the gateway adds one configured upstream header.
• gateway_bearer_token: the gateway adds an upstream Authorization: Bearer ... header.
• user_passthrough: resolve a caller-owned user/service-account/team credential binding at execution time.
• oauth_obo: resolve an OAuth-shaped bearer credential binding at execution time.

Discovery still uses none, gateway_static_header, or gateway_bearer_token. user_passthrough and oauth_obo are execution-time modes; they require an active upstream credential binding when a client calls a tool.

Gateway-Managed Upstream Credentials

Gateway-managed credentials are for the upstream MCP server only. They are not caller credentials and are never returned to admin UI clients.

For gateway_static_header:

{
  "header_name": "X-API-Key",
  "secret_ref": "env/OCEANS_MCP_DISCOVERY_EXAMPLE_KEY"
}

For gateway_bearer_token:

{
  "secret_ref": "env/OCEANS_MCP_DISCOVERY_EXAMPLE_TOKEN"
}

Credentialed modes require an HTTPS server_url. Secret references must use env/OCEANS_MCP_DISCOVERY_*. The environment variable is resolved by the gateway process during discovery and proxying.

Inbound Oceans credentials are always stripped before forwarding upstream. The gateway forwards only MCP protocol/runtime headers plus configured gateway-managed upstream auth.

Principal-Bound Upstream Credentials

For user_passthrough and oauth_obo, configure MCP credential bindings in the admin control plane. Bindings are separate from server registry records and grants:

• owner scopes are user, team, or service_account
• material kinds are static_header, bearer_token, or oauth_tokens
• storage is either an encrypted blob or a secret_ref
• raw secrets are accepted only on submission and are never returned by admin APIs

Encrypted bindings require OCEANS_MCP_CREDENTIAL_ENCRYPTION_KEY to be set to a base64-encoded 32-byte key in the gateway process. Credential secret_ref values must use env/OCEANS_MCP_CREDENTIAL_*.

Runtime resolution order:

• user-owned API key: user binding, then team binding
• service-account API key: service-account binding, then owning-team binding

Grant checks happen before credential lookup. A denied tool address does not reveal whether a credential exists.

Discovery

Discovery is the current server health signal.

Refresh discovery from the admin UI after adding or editing a server. Discovery:

• initializes Streamable HTTP
• lists upstream tools
• stores normalized tool schemas
• updates schema hashes and schema versions
• marks missing tools inactive
• records bounded failure summaries

No separate ping health check or discovery-run history UI exists in this slice.

Access

On /mcp, search_tools, describe_tool, and call_tool resolve only active tools granted to the authenticated API key, owner user, owner service account, or team.

On /mcp/{server_key}, tools/list responses are filtered to granted active tools for that server. tools/call is rejected before upstream when the tool is not granted. Disabled servers, inactive tools, disabled toolsets, revoked grants, inactive memberships, missing credentials, and expired credentials do not resolve as callable access.
